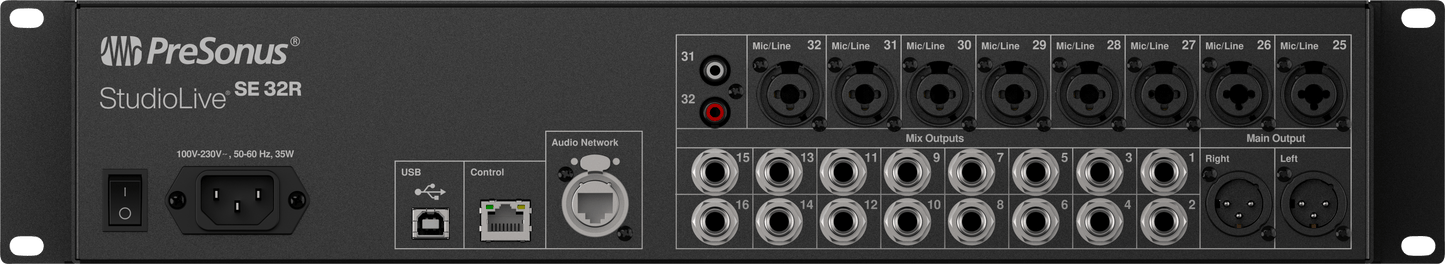

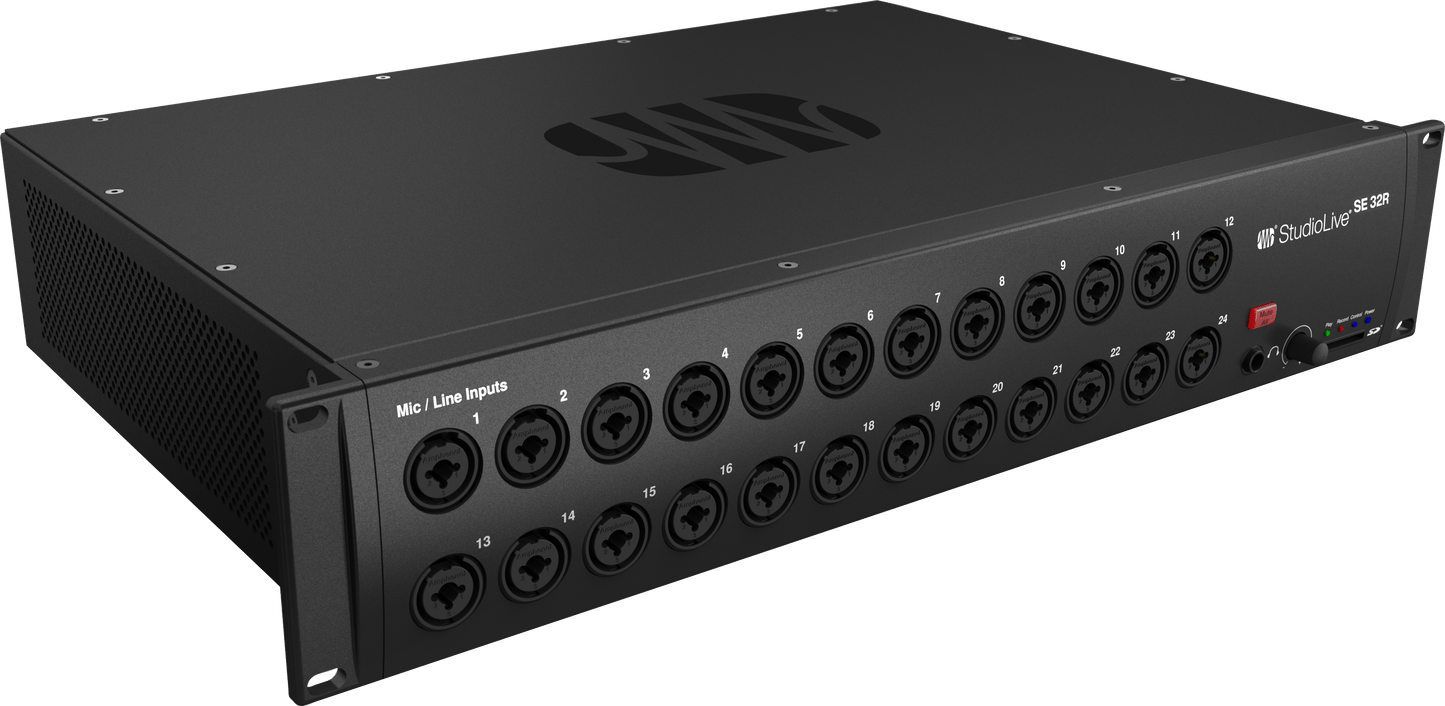

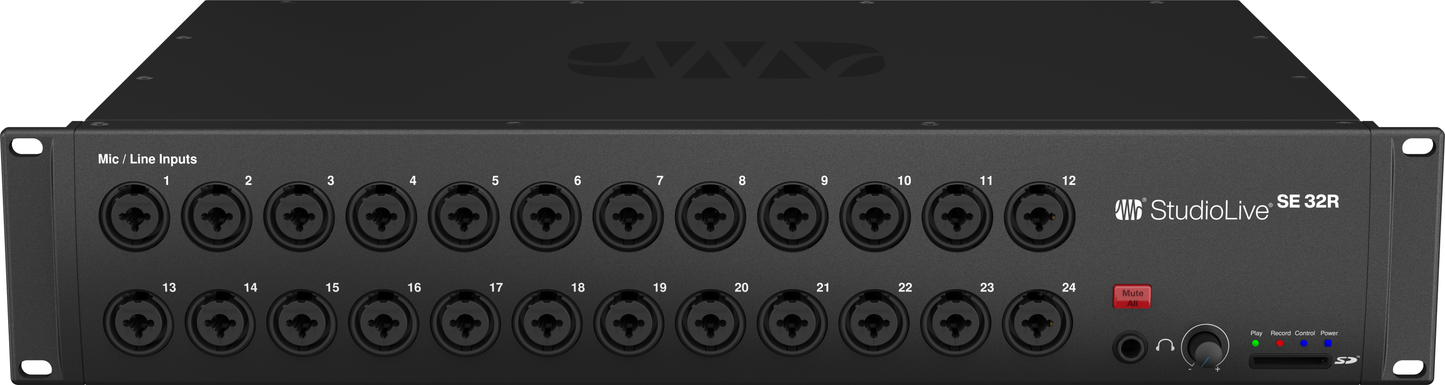

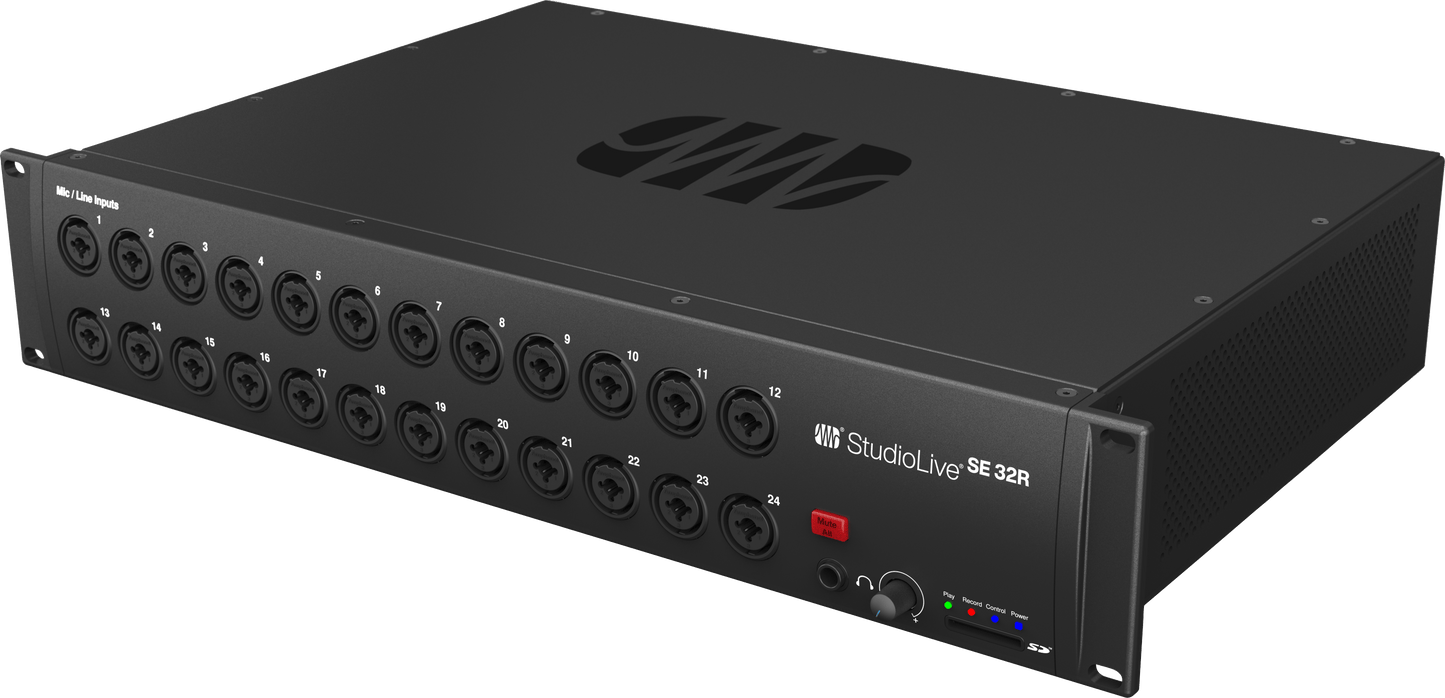

StudioLive® SE 32R Digital Rack Mixer
StudioLive® SE 32R Digital Rack Mixer
ID:
2779206206
Precio habitual
1.799,00 €
Precio habitual
1.799,00 €
1.799,00 €
Precio de oferta
Precio unitario
por
IVA incl.*
No se pudo cargar la disponibilidad de retiro
Visión General
40-channel rack mixer with 32 onboard XMAX-R recallable preamps, 16 FlexMixes plus four dedicated subgroups, multitrack USB plus stereo SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, and recording
La StudioLive SE 32R combina 32 preamplificadores XMAX-R recuperables con 16 FlexMixes, 4 subgrupos, 4 mezclas FX y 24 DCA para un control total de los canales. La interfaz de audio USB bidireccional continua de 64x64, la grabación estéreo SD integrada y la función Virtual Soundcheck con el software Capture proporcionan una solución completa de grabación y reproducción.
Las redes AVB con certificación Milan garantizan una integración perfecta con los cajetines de escenario NSB, los mezcladores de monitorización personal EarMix 16M y otros mezcladores StudioLive Series III. El cambio de fuente por canal y el control inalámbrico con Universal Control y QMix-UC proporcionan a los ingenieros y artistas la máxima flexibilidad en el flujo de trabajo.
Overview
Características
- Mezclador digital en rack de 40 canales con 32 preamplificadores XMAX-R seleccionables
- 16 FlexMixes configurables como mezclas auxiliares, de subgrupos o matriciales
- 4 mezclas de subgrupos y 4 FX dedicadas con retornos estéreo
- 24 grupos DCA para un control de precisión
- Interfaz de audio 64x64 USB 2.0 bidireccional continuo
- Grabación SD estéreo integrada
- Integración de Capture con Virtual Soundcheck
- Redes AVB certificadas por Milan para los ecosistemas Series III
- Cambio de fuente por canal (analógica, USB, SD, AVB)
- Mezcla remota con Universal Control y Offline Editor
- Mezcla de monitoreo personal QMix-UC
- Modos Autónomo, mezclador de monitor o cajetín de escenario
- Licencia perpetua para Fender Studio Pro incluida
Descargas
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Capture 2 v2.3.2.43810 (Windows)
- Capture 2 v2.3.2.44119 (Windows)
- Capture 2 v2.3.5.44938 (Windows)
- Capture 2 v2.3.6.45267 (Windows)
- Capture v2.3.6.45951 (Windows)
- Capture v2.4.0.47589 (Windows)
- Capture 2 v2.1.0.24135 (Windows)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Destacados
ALTA FLEXIBILIDAD DE CANALES
32 preamplificadores XMAX-R integrados con FlexMix versátil, subgrupos, efectos y enrutamiento DCA.
ENRUTAMIENTO Y MONITORIZACIÓN PROFESIONALES
Diseñado para ofrecer movilidad, versatilidad y flexibilidad, tanto en la carretera como en el escenario o en el estudio.
LA GRABACIÓN MÁS FÁCIL
Grabación USB 64x64, SD estéreo integrado y Virtual Soundcheck con integración del software Capture y Fender Studio Pro.
LISTO PARA CONEXIÓN INALÁMBRICA Y EN RED
Universal Control y QMix-UC ponen la mezcla en sus manos, mientras que las redes de audio con certificación Milan facilitan la ampliación del sistema.
INTEGRACIÓN CON FENDER STUDIO PRO
La profunda integración con Fender Studio Pro simplifica la grabación con control directo del preamplificador y cambio fluido entre el procesamiento integrado y el procesamiento de plug-ins con Fat Channel XT.
Especificaciones
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
230V EUR
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
StudioLive® SE 32R Digital Rack Mixer, Black, EU
Series
StudioLive®
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Height/Length
3.5” (90 mm)
Product Weight
11.2 lbs. (5 kg)
Product Width
19" (483mm)
Refinement Weight
25-under
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
Especificaciones
