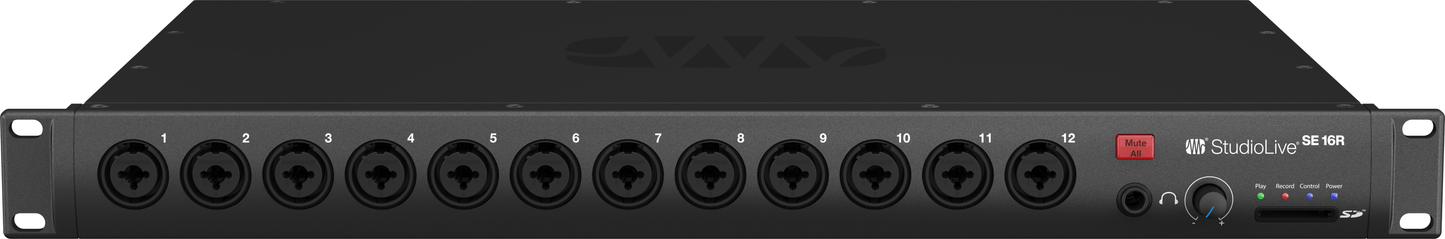

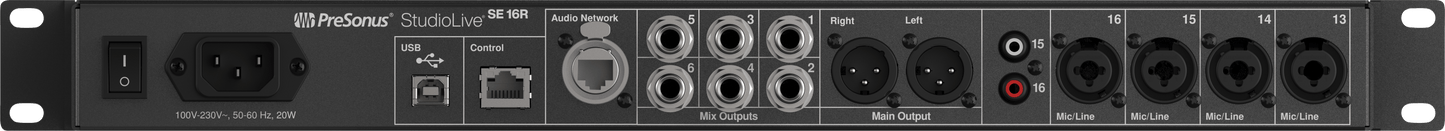

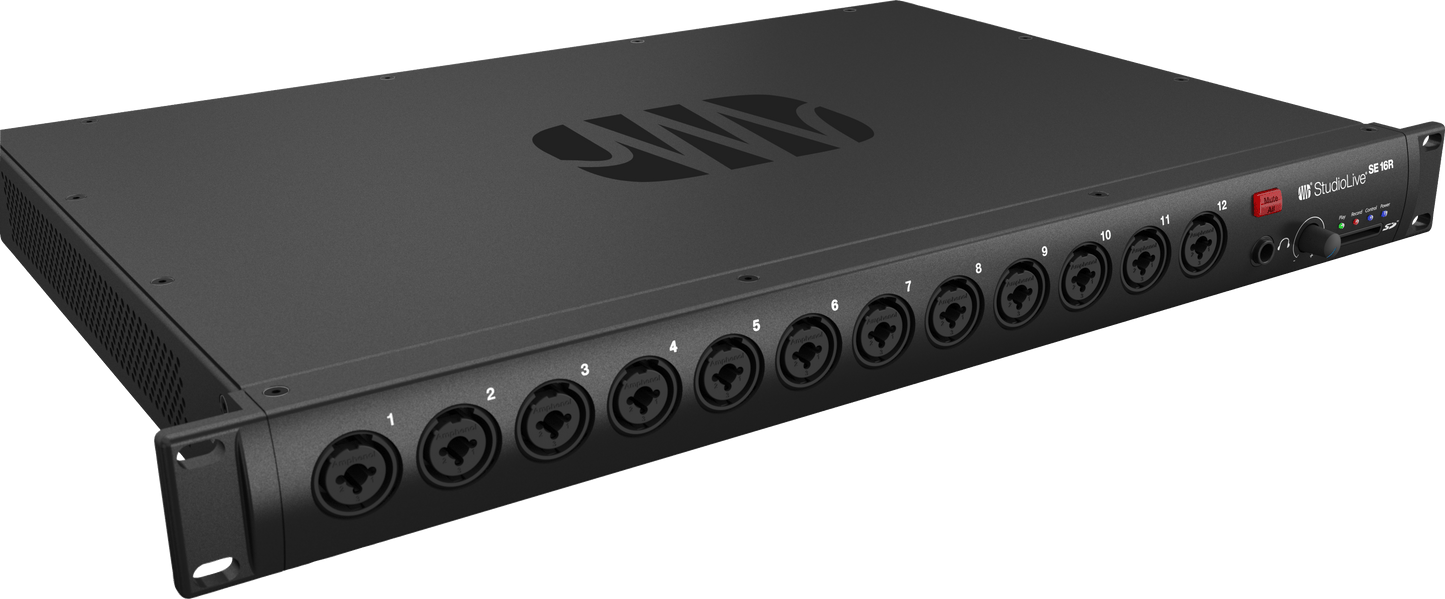

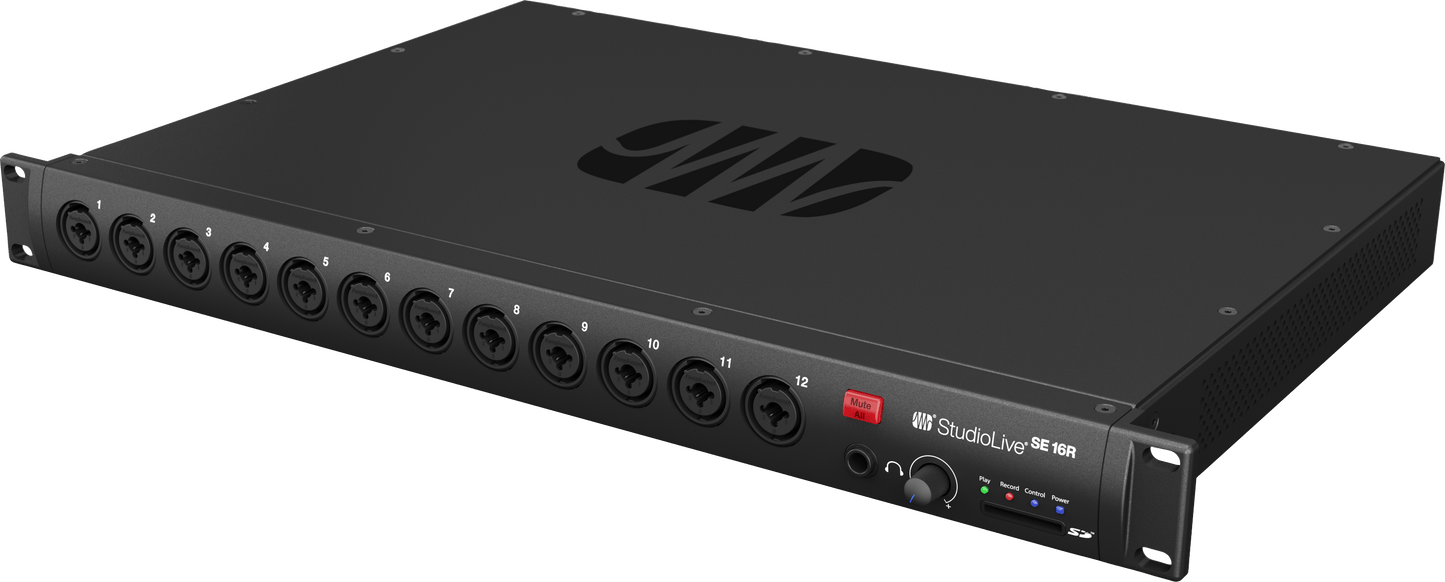

StudioLive® SE 16R Digital Rack Mixer
StudioLive® SE 16R Digital Rack Mixer
ID:
2779206204
Precio habitual
999,00 €
Precio habitual
999,00 €
999,00 €
Precio de oferta
Precio unitario
por
IVA incl.*
No se pudo cargar la disponibilidad de retiro
Visión General
Compact 18-channel digital rack mixer with XMAX-R recallable preamps, six FlexMixes, integrated USB and SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, recording, and livestreaming.
La StudioLive SE 16R reúne toda la potencia de mezcla de gran formato en una unidad de rack compacta de 1U. Con 16 preamplificadores de micrófono XMAX-R con memoria y procesamiento FLEX DSP Fat Channel, cada entrada y bus cuenta con ecualización y compresión de calidad de estudio para obtener un sonido pulido y profesional. Seis FlexMixes, dos mezclas FX dedicadas y seis DCA proporcionan un control completo del enrutamiento.
La grabación USB integrada 18x18, la captura SD estéreo integrada y la función Virtual Soundcheck con el software Capture agilizan la grabación y la reproducción. El cambio de fuente por canal entre analógico, USB, SD y AVB facilita las configuraciones híbridas. Además, la red de audio integrada con certificación Milan permite el funcionamiento plug-and-play con la línea completa de productos StudioLive Series III, mientras que Universal Control y QMix-UC ofrecen libertad de mezcla inalámbrica.
Overview
Características
- Mezclador digital en rack de 18 canales con 16 preamplificadores de micrófono XMAX-R seleccionables
- 6 FlexMixes configurables como mezclas auxiliares, de subgrupos o matriciales
- 2 mezclas FX dedicadas con retornos estéreo
- Interfaz de audio USB 2.0 18x18 bidireccional continua
- Grabación SD estéreo integrada
- Prueba de sonido virtual con el software Capture
- Redes AVB certificadas por Milan para sistemas StudioLive Serie III
- Cambio de fuente por canal (analógica, USB, SD, AVB)
- Mezcla remota con Universal Control y Offline Editor
- Mezcla de monitores individuales QMix-UC con Wheel of Me
- Modos Autónomo, mezclador de monitor, interfaz o cajetín de escenario
- Licencia perpetua para Fender Studio Pro incluida
Descargas
Don't see what you're looking for?
Log in to your my.presonus.com account.
- StudioLive® Series III 16R Digital Rack Mixer Firmware v3.3.0.109659
- Studio One Remote Installer v1.2 (Android)
- Capture 2 v2.4.0.50756 (Mac)
- Capture 2 v2.4.0.50756 (Windows)
- Capture v3.0.0.51747 (Mac)
- Capture v3.0.0.51747 (Windows)
- Capture v3.0.1.52030 (Mac)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Destacados
MEZCLAS COMPACTAS Y LISTAS PARA GIRAS
18 canales con preamplificadores totalmente recuperables y potencia DSP en un rack de 1U.
ENRUTAMIENTO FLEXIBLE
Los FlexMixes, buses FX y DCA configurables permiten crear mezclas con calidad de estudio de forma rápida y sencilla.
GRABACIÓN SIN PROBLEMAS
USB multipista con integración Capture y prueba de sonido virtual, además de grabación SD estéreo integrada.
LISTO PARA CONEXIÓN INALÁMBRICA Y EN RED
Red AVB certificada por Milan, Universal Control y QMix-UC para una total libertad en el flujo de trabajo.
INTEGRACIÓN CON FENDER STUDIO PRO
La profunda integración con Fender Studio Pro simplifica la grabación con control directo del preamplificador y cambio fluido entre el procesamiento integrado y el procesamiento de plug-ins con Fat Channel XT.
Especificaciones
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
230V EUR
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
StudioLive® SE 16R Digital Rack Mixer, Black, EU
Series
StudioLive®
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (30.5 cm)
Product Height
1.75" (4.45 cm)
Product Height/Length
1.75" (4.45 cm)
Product Weight
8.6 lbs. (3.9 kg)
Product Width
19" (48.3 cm)
Refinement Weight
25-under
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
