StudioLive 315AI

StudioLive® 315AI Active Integration loudspeakers deliver studio-monitor accuracy onstage with unprecedented onboard processing and networking features in a compact form factor. PreSonus® Active Integration technology enables wireless and wired networking control for setup, tuning, and monitoring functions, using an iPad®, a Mac® or Windows® laptop, or both. The StudioLive 315AI provides the best imaging and intelligibility in its class, making it an ideal choice for installations and mobile applications where high fidelity matters.

A compact, full-range system that provides plenty of low end, the StudioLive 315AI delivers 3-way coverage, with a 15-inch low-frequency driver and our proprietary 8-inch, CoActual® coaxial speaker for mid- and high-frequency reproduction. These transducers are driven by a hefty 2,000W RMS of triamplified, Class D power, all housed in a compact enclosure. The 315AI is time- and phase-aligned to form a true 4-way system when paired with the StudioLive 18sAI subwoofer, with or without the highpass filter engaged, to provide an optional overlap at 100 Hz for applications that require a little more low-end punch.

PreSonus’ proprietary CoActual 8-inch, horn-loaded coaxial speaker offers a consistent acoustic center and is responsible for high- and mid-frequency reproduction. The single point source provided by this coaxial design offers unique advantages, thanks to the driver’s symmetrical response. The net result is exceptional 3D imaging and a natural listening experience that reveals the subtlest details.

The StudioLive 315AI comes equipped for wireless and wired communications over an Ethernet or Wi-Fi local area network for monitoring and control over custom tuning settings. Better yet, add the SL-Dante-SPK option card to create a Dante™ network and ditch your analog cables in favor of lightweight CAT5e or CAT6 cables.

The StudioLive 315AI features a robust onboard loudspeaker processor that can be accessed and controlled over a standard LAN network. PreSonus’ SL Room Control app for iPad, Mac, and Windows provides rich, easy-to-use system configuration and individual and group control over any StudioLive AI loudspeaker on the network, including alignment delay, parametric EQ, notch filters, group level, and graphic EQ, as well as performance monitoring. SL Room Control makes customizing your speaker system as simple as connecting an Ethernet cable to a wireless router.

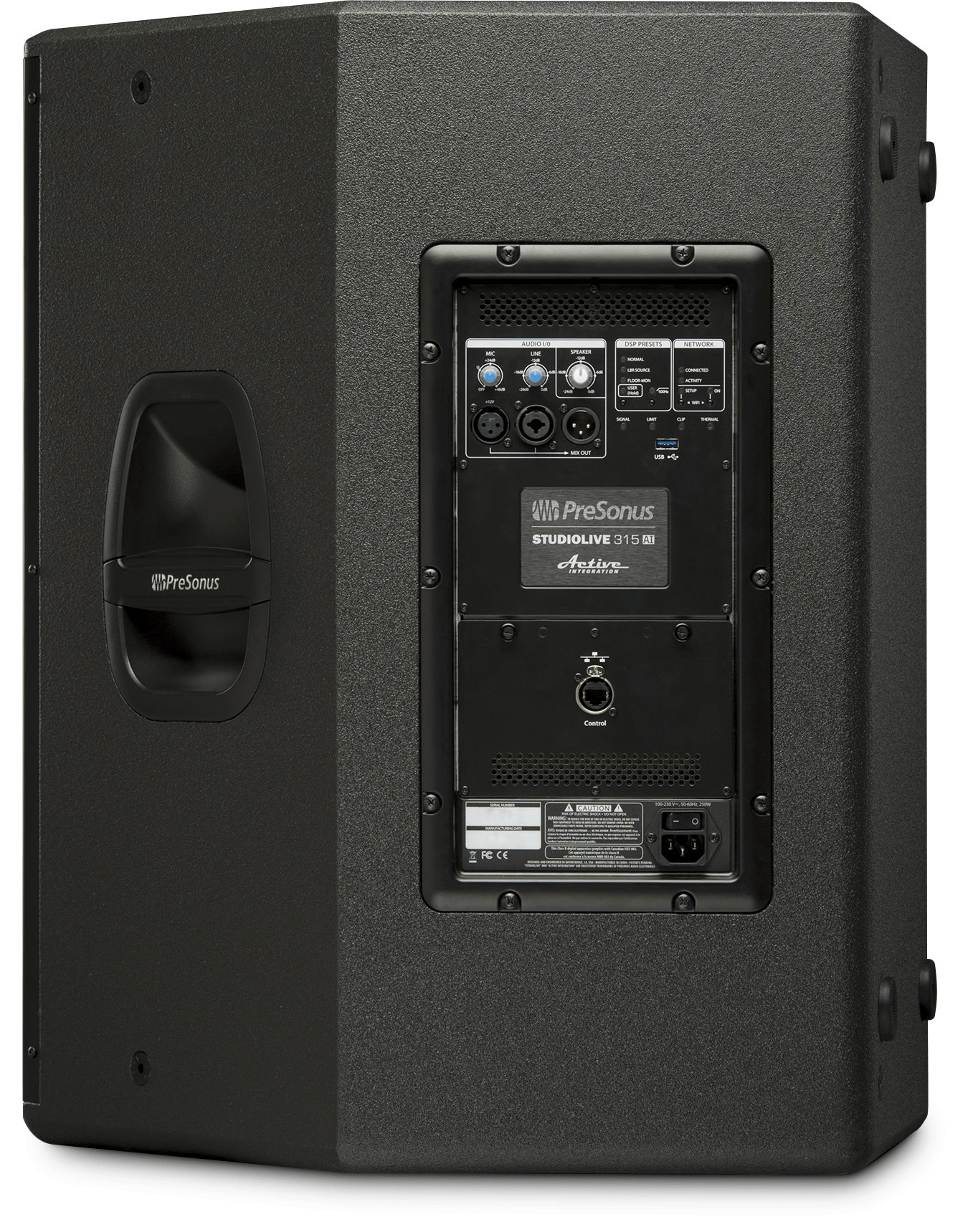

The rear of the StudioLive 315AI reveals a combo XLR/TRS line input and an XLR microphone input with an XMAX™ Class A mic preamplifier and 12V phantom power, as well as an XLR mix output. In addition to the input mixer, you get speaker level-attenuation control. The lightweight plywood enclosure has two ergonomic side handles, interlocking stacking, and M10 fly points. Dual-position pole mounts allow you to mount the speaker atop a stand or subwoofer at 90 degrees or at a 10-degree downward tilt.

Whether out on tour or installed in a venue, StudioLive 315AI loudspeakers deliver studio-monitor accuracy at incredibly high SPL, with amazing imaging and intelligibility. With extensive software control and wired and wireless networking, it offers advanced capabilities that go well beyond conventional point-source loudspeakers, yet it’s easy to set up and use. Check out the StudioLive 315AI at your favorite PreSonus dealer.
