Visión General
Los altavoces CDL12 asombraron a los oídos de todo el mundo cuando los presentamos, gracias en gran parte a su diseño único, con un diseño de driver pendiente de patente que llena los lugares con una reproducción de voz y música coherente y articulada sin sacrificar la presión sonora uniforme. Ahora ese mismo rendimiento de directividad constante está disponible en el nuevo CDL10P, un diseño más ligero ideal para los grupos en gira y los DJs móviles que quieren la misma escalabilidad y rendimiento de sonido en el diseño portátil. Al igual que el CDL12P, el CDL10P es el resultado de años de investigación y desarrollo, combinando los mejores atributos de la tecnología de fuente puntual y formación en línea (line array) en un único diseño con la patente en trámite. Obtendrás una inteligibilidad verbal clara y articulada y una reproducción musical natural gracias a su patrón altamente enfocado con un SPL constante en toda la gama de respuesta en frecuencia, tanto dentro como fuera del eje. El diseño híbrido de fuente puntual/formación en línea del CDL10P ofrece un sonido centrado con una cobertura SPL consistente tanto en el eje como fuera de este, convirtiéndolo en una excelente elección para aplicaciones tanto móviles como en instalaciones. El aparejamiento de las carcasas del CDL10P es muy sencillo gracias a los aparejos con pestillo integrados. Dispone de un montaje en mástil de doble ángulo que permite utilizar una o dos cajas cuando se montan en mástil. El amplificador de potencia Clase D integrado de 500W x 500W del CDL12P cuenta con presets DSP integrados para facilitar y simplificar las configuraciones en formación en línea.
Overview
Características
- El array de directividad continua y curva constante con ocho transductores de cono de 2 pulgadas dispersa el sonido 120° horizontalmente

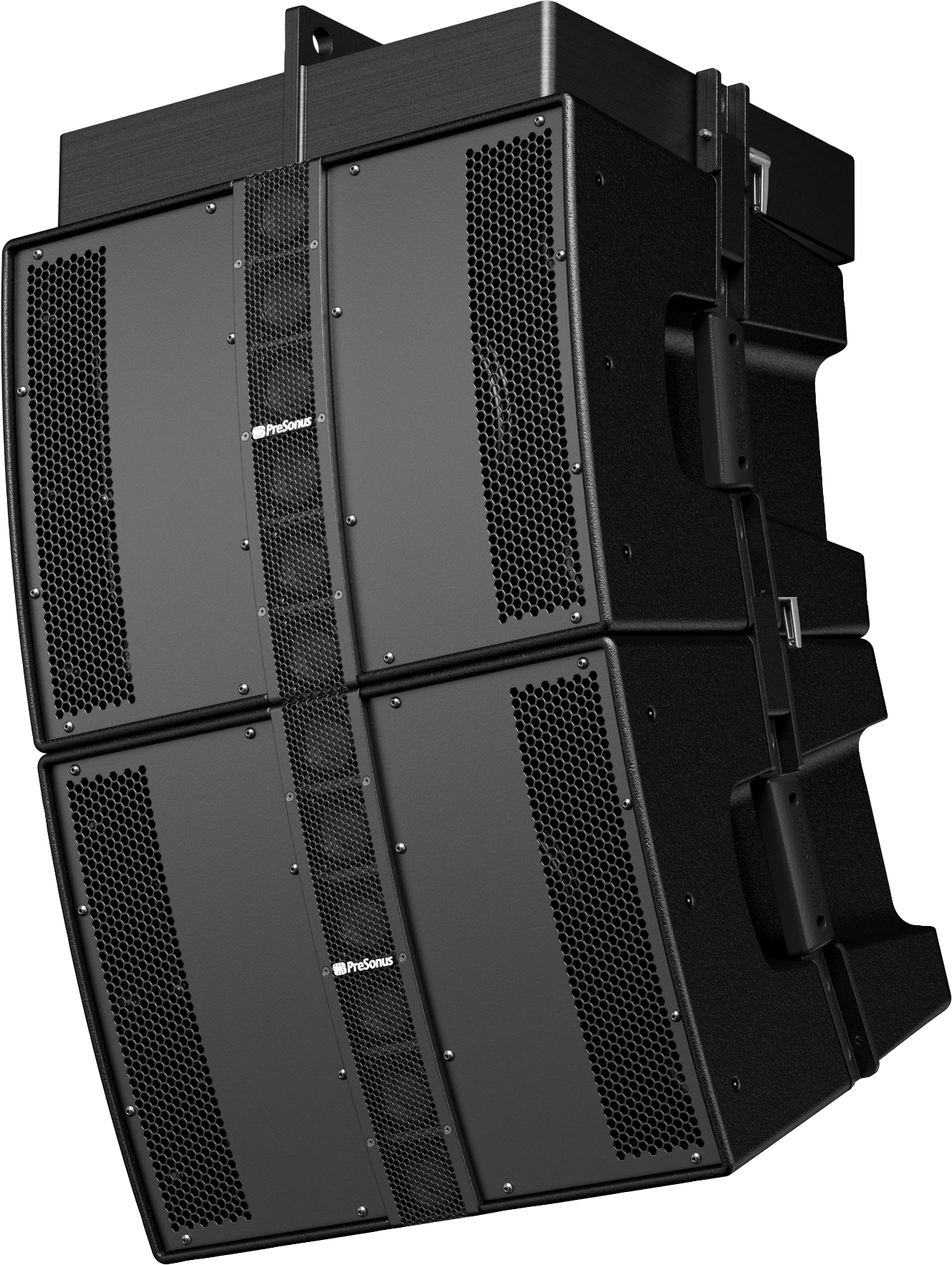

- La directividad vertical de 15˚ puede ampliarse de 30˚ a 90˚ con CDL10P adicionales en array
- Transductor LF de 10 pulgadas y largo recorrido con bobina móvil de 2.5 pulgadas
- El punto de cruce situado a 420 Hz minimiza el filtrado en peine y mejora la inteligibilidad del line array
- 500 x 500 vatios de potencia de clase D para altos niveles de presión sonora y una respuesta transitoria ultrarrápida
- DSP incorporado: Filtro paso-alto 90, Modo Array (1-6 cajas), Modo Sub (Off, CDL18s, ULT18 ó AIR18s)

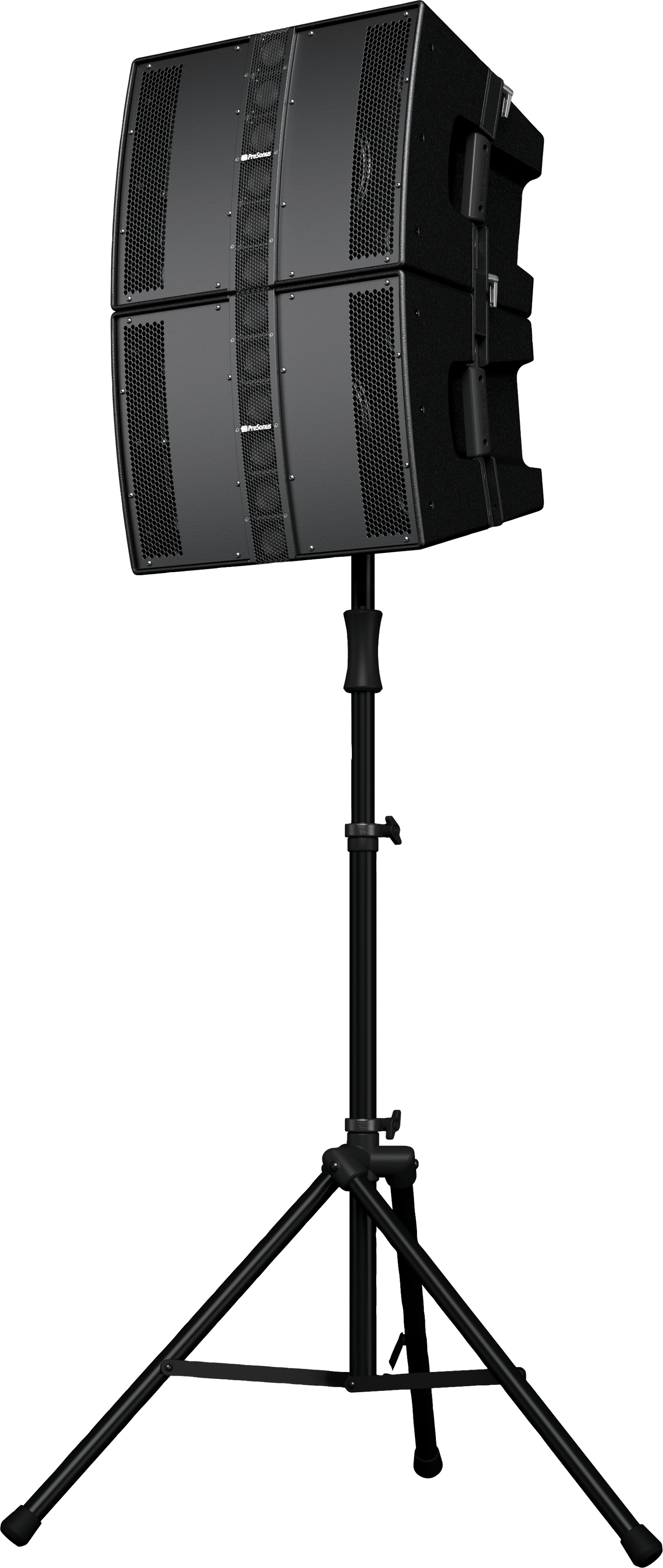

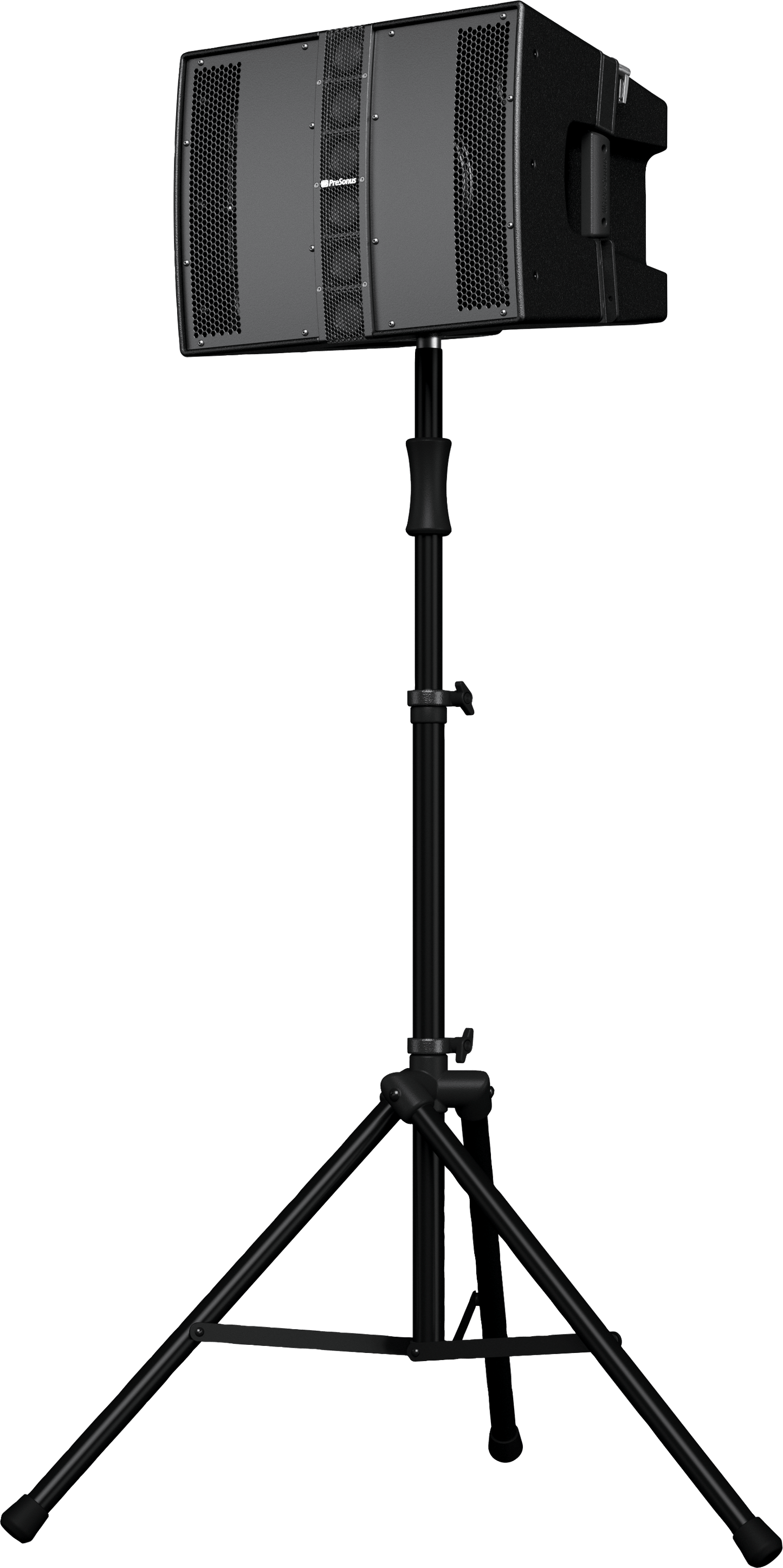

- Boca para mástil de 35 mm con inclinación hacia abajo de 7.5˚ para su uso con hasta dos CDL10P en un trípode o encima de un subwoofer PreSonus® CDL Sub18, CDL18s ó ULT18

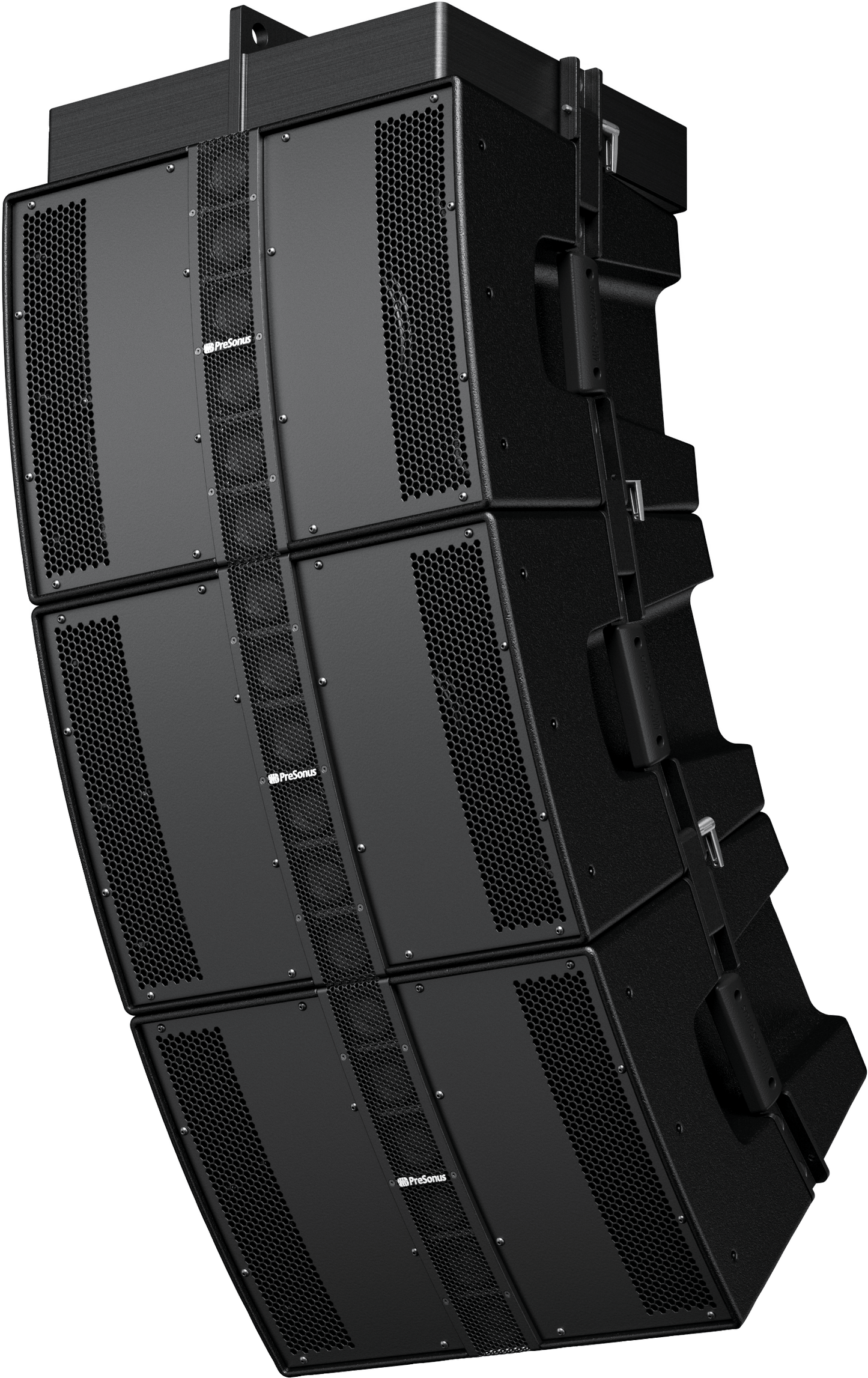

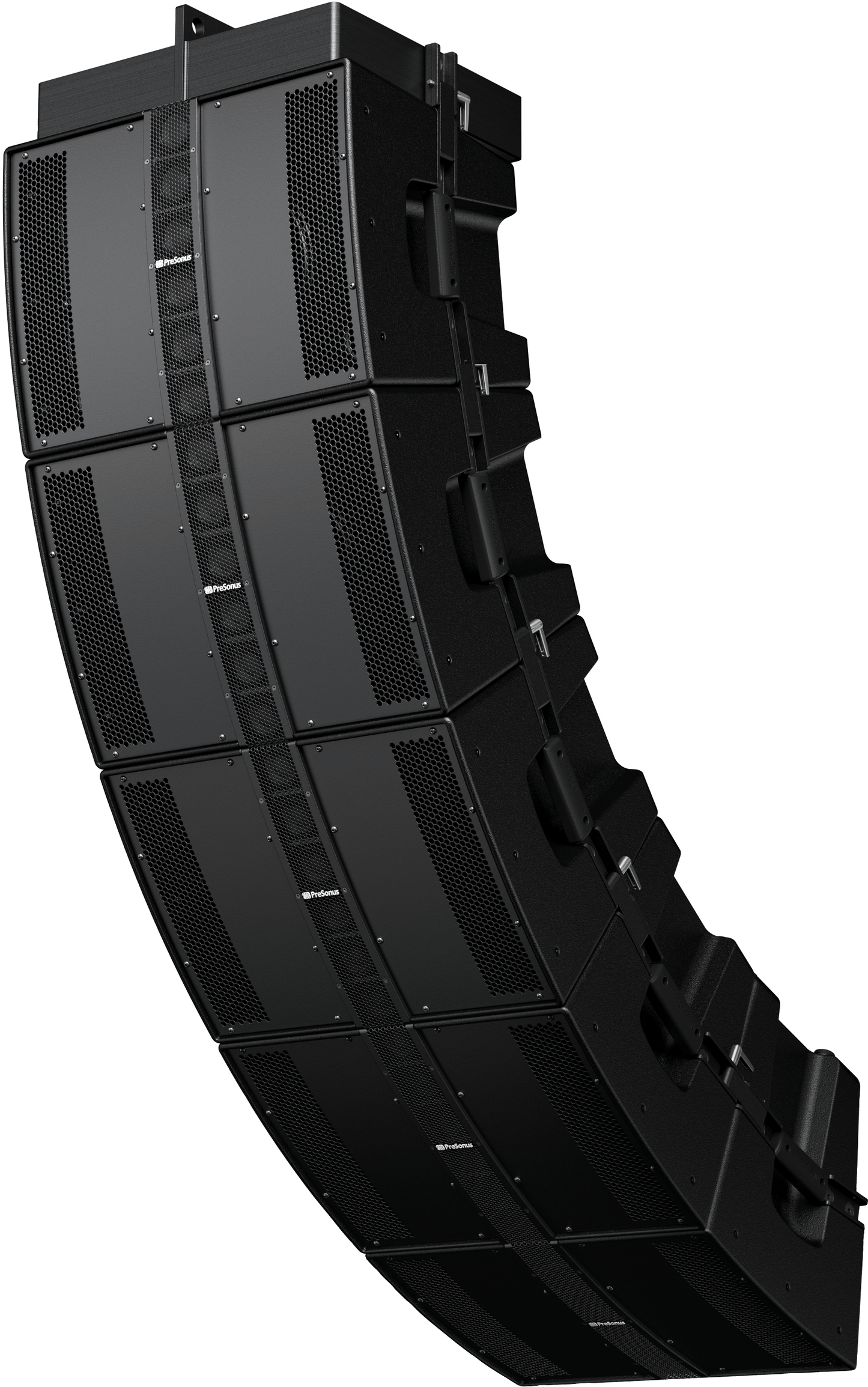

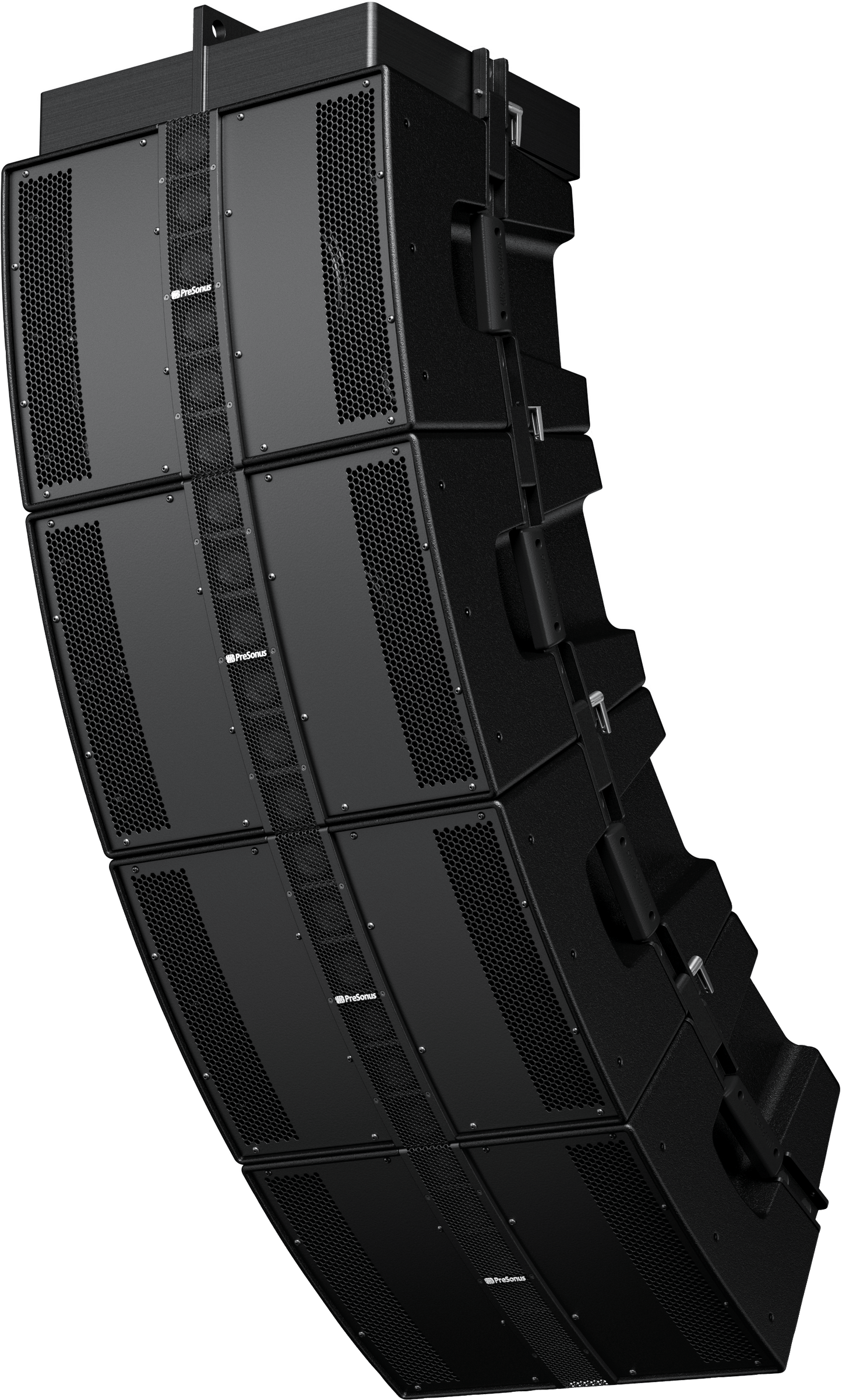

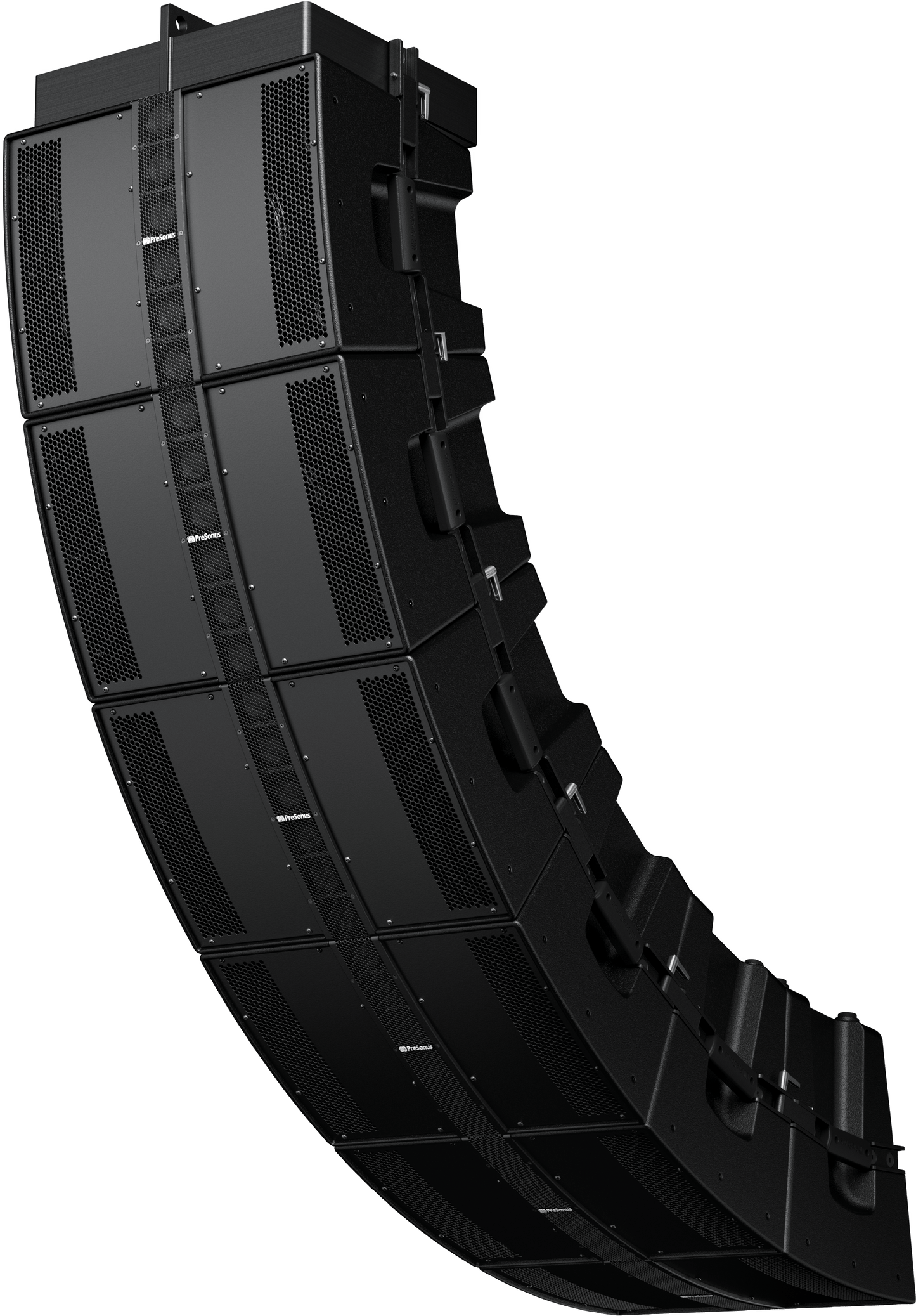

- Flyware integrado para crear un conjunto de hasta seis CDL10P
- Monitorización de señal, -3 dB, protección de limitador y clip
- Carcasa de plástico resistente y ligera y rejilla de acero de 1.2 mm apta para giras: ideal para grupos en gira y DJs itinerantes
Descargas
¿No encuentras lo que estás buscando?
Accede a tu cuenta en my.presonus.com.
Documentation
¿No encuentras lo que estás buscando?
Accede a tu cuenta en my.presonus.com.
Destacados
The CDL10P’s Constant Directivity Design

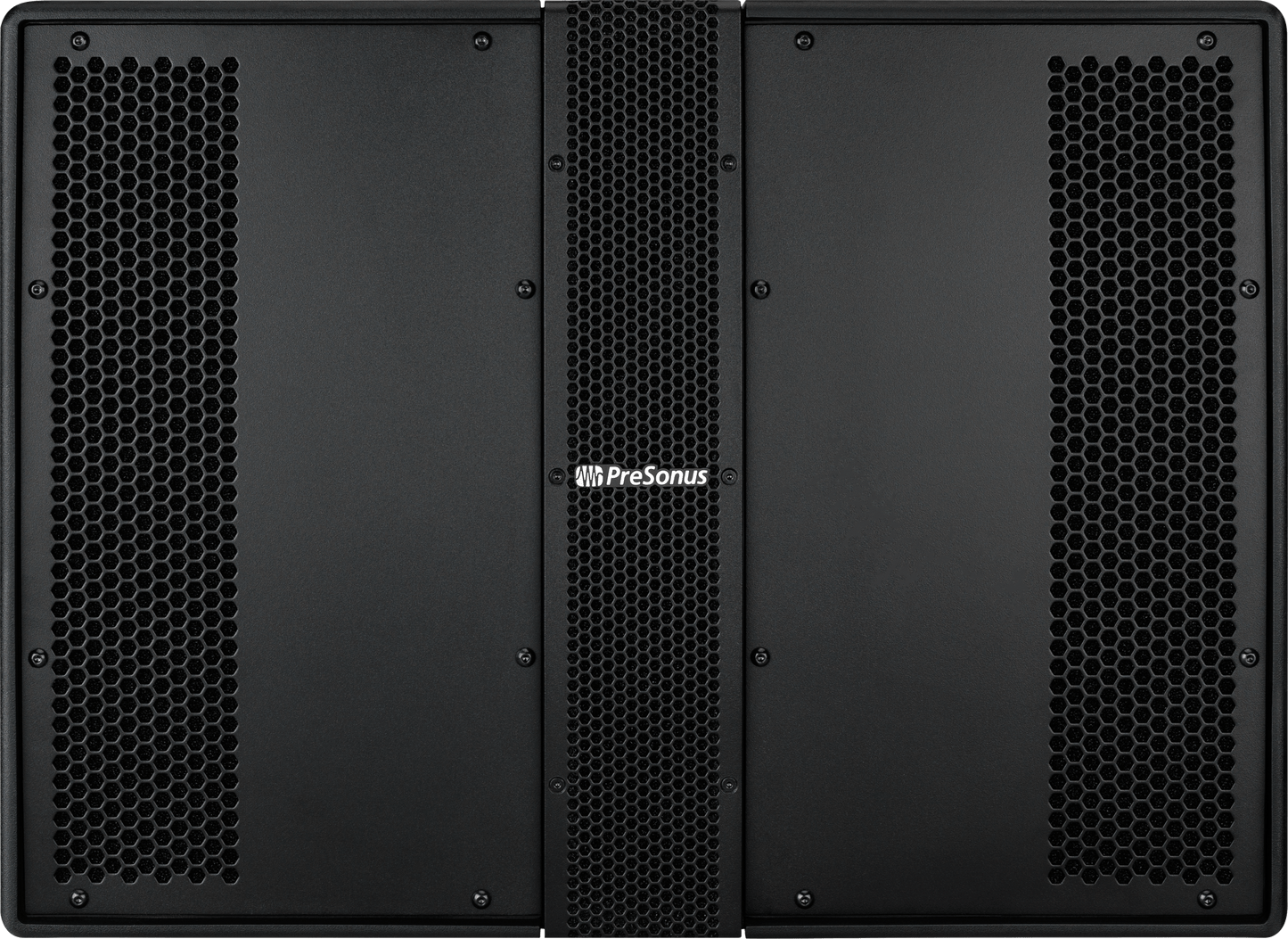

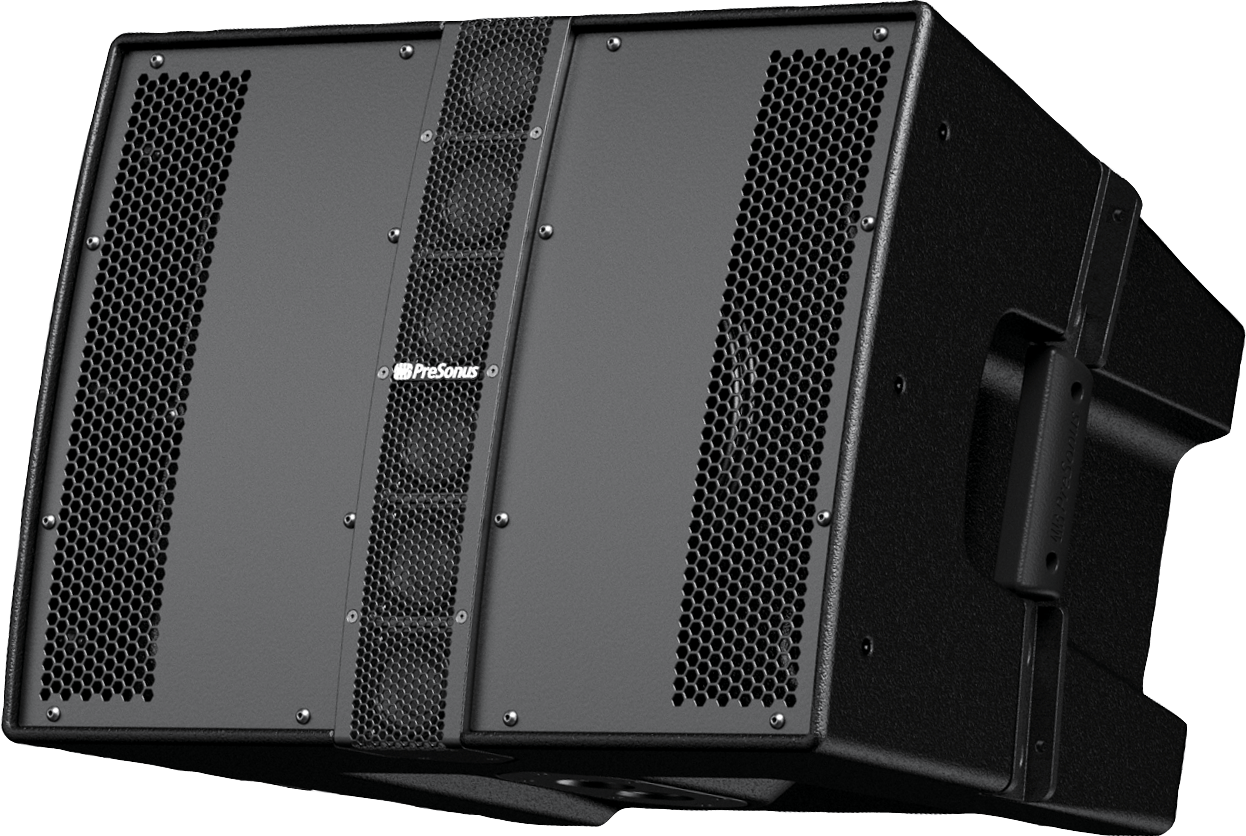

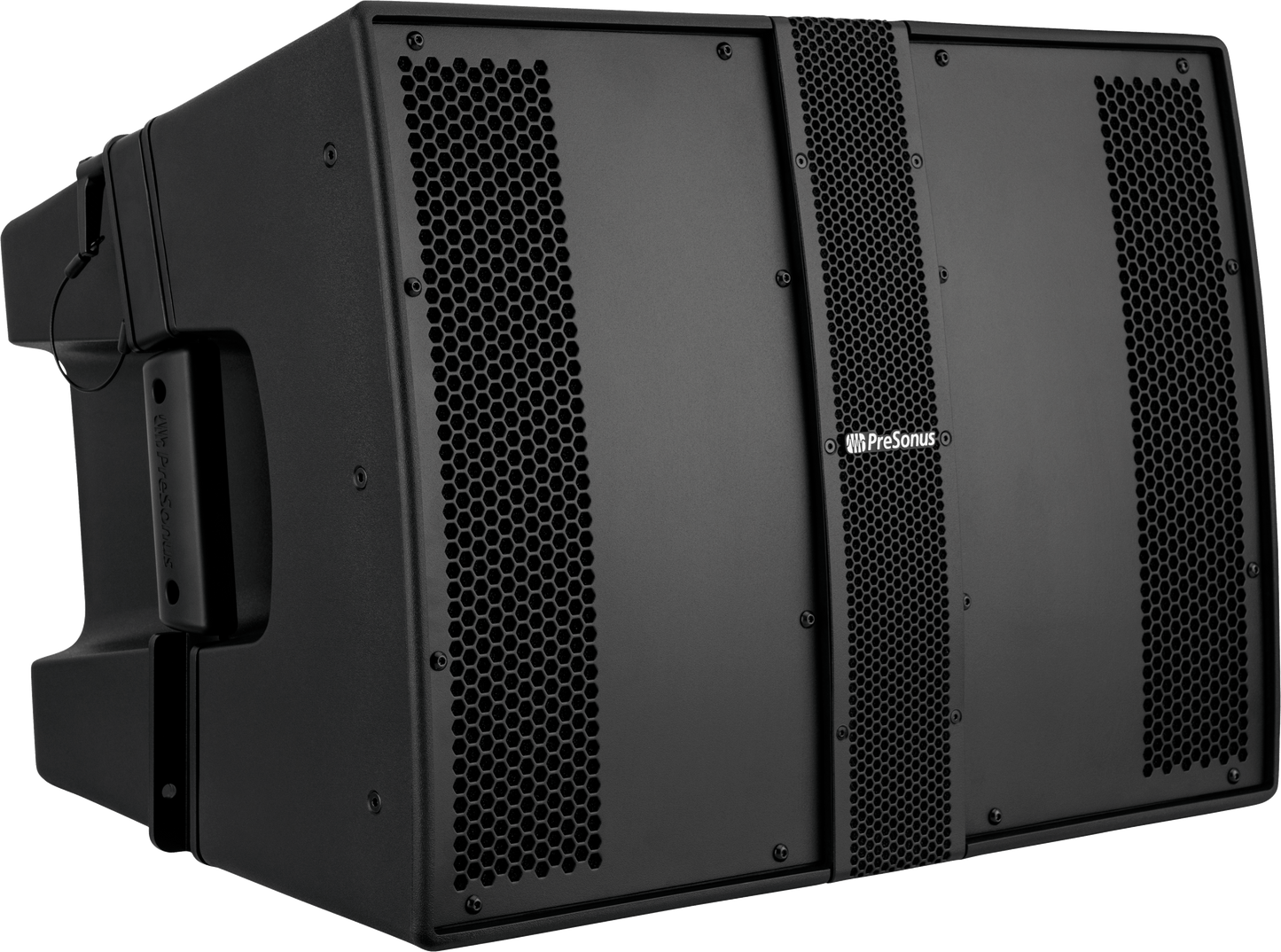

Each CDL10P consists of 6 2-inch drivers aligned in a segmented, circular-arc, HF array centered in front of a 10-inch woofer. The output of the LF driver travels from the same acoustic axis as the HF array so the pattern always radiates from the center. This avoids near-field anomalies and makes the CDL10P ideal for a broad range of venue sizes.
More About the CDL10P’s HF Driver Array
The 2-inch cones’ fast transient response is matched for high- and mid-range reproduction. This is enhanced by setting the internal crossover to 420 Hz, so the CDL10P reproduces audio seamlessly, with no gaps at the heart of the musical range. This also minimizes comb filtering between 10-inch bass drivers in an array for a smooth low-mid response.
CDL10P Power Amplification
Each 2-inch speaker in the high-frequency driver array has a 1-inch voice coil, and the entire array is driven by a 500W Class D amplifier. Because the power is shared across six voice coils, power compression is reduced, resulting in an efficient design and a flatter phase response for less fatiguing listening and a refined, balanced sound.
CDL-series Rigging Accessories

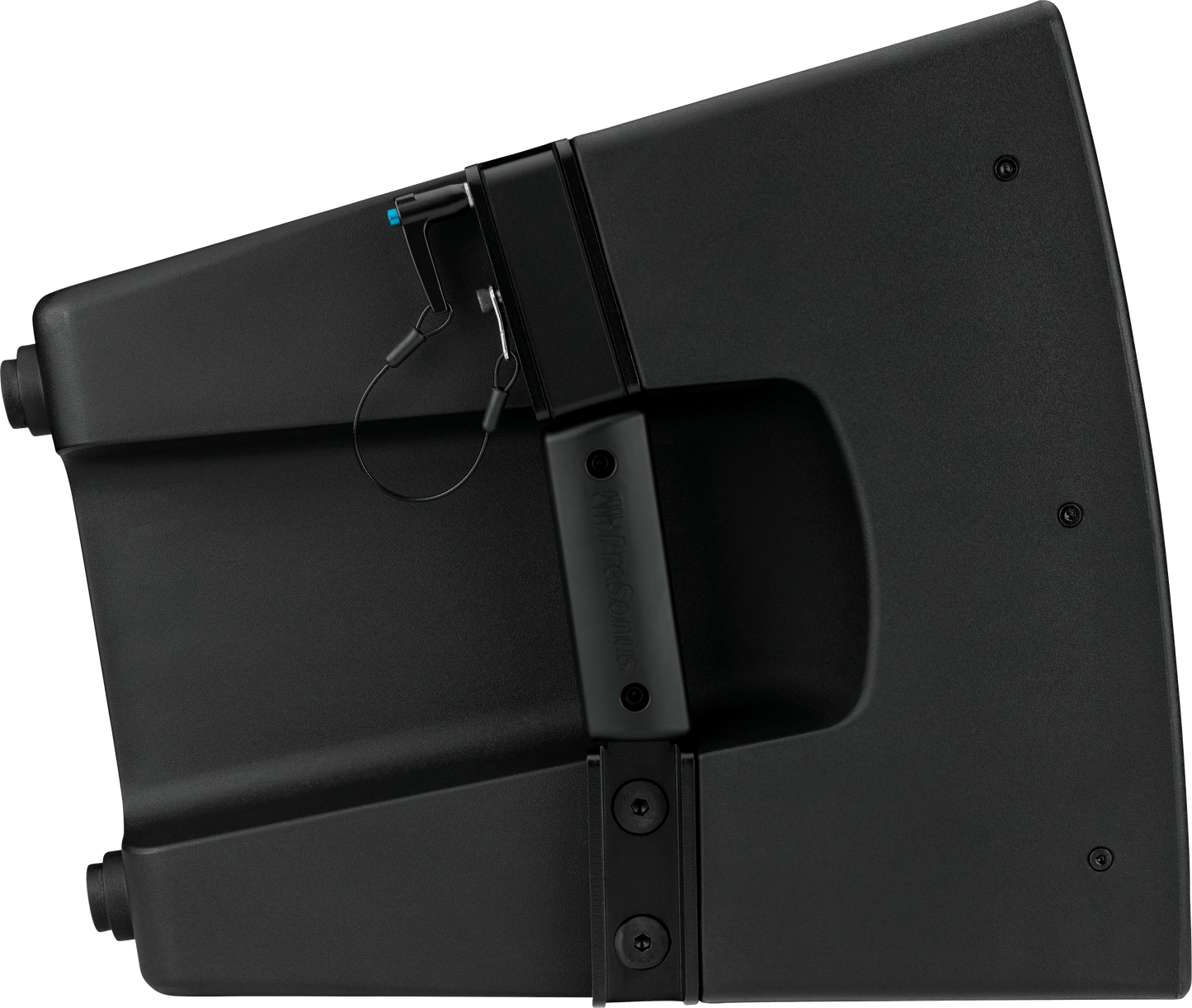

CDL loudspeakers and rigging hardware are rated for a 10:1 load. The CDL10P Rigging Grid is required for flown installations. The CDL Rigging Extension Bar provides tilt control. The CDL10P Rigging Sling is required with 4 or more CDL loudspeakers in a vertical array and when using the CDL Rigging Extension Bar with a tilt of 12˚ or greater.
PreSonus® Six-Year Warranty
When you choose CDL-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.
Especificaciones
Electrónica

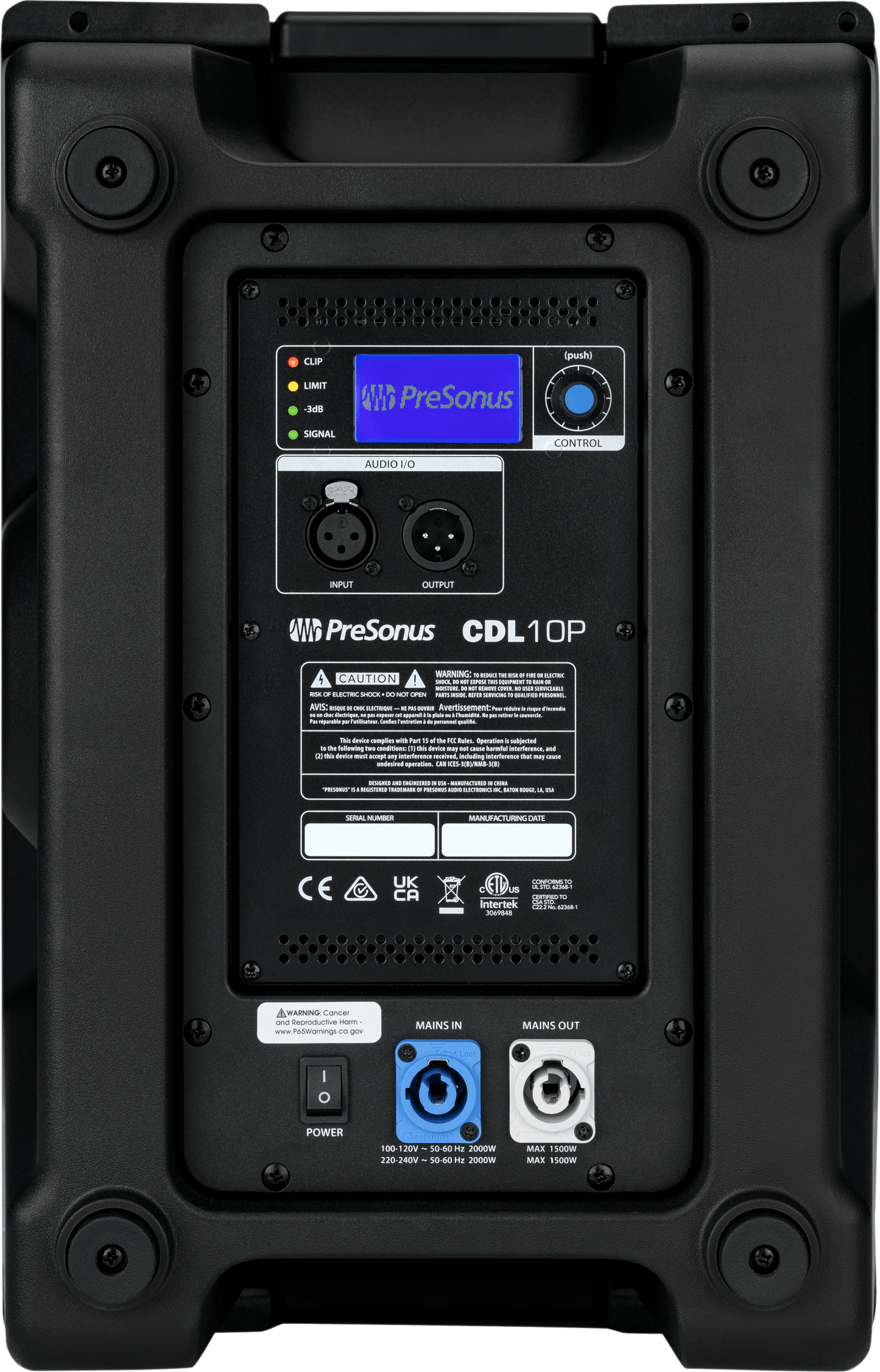

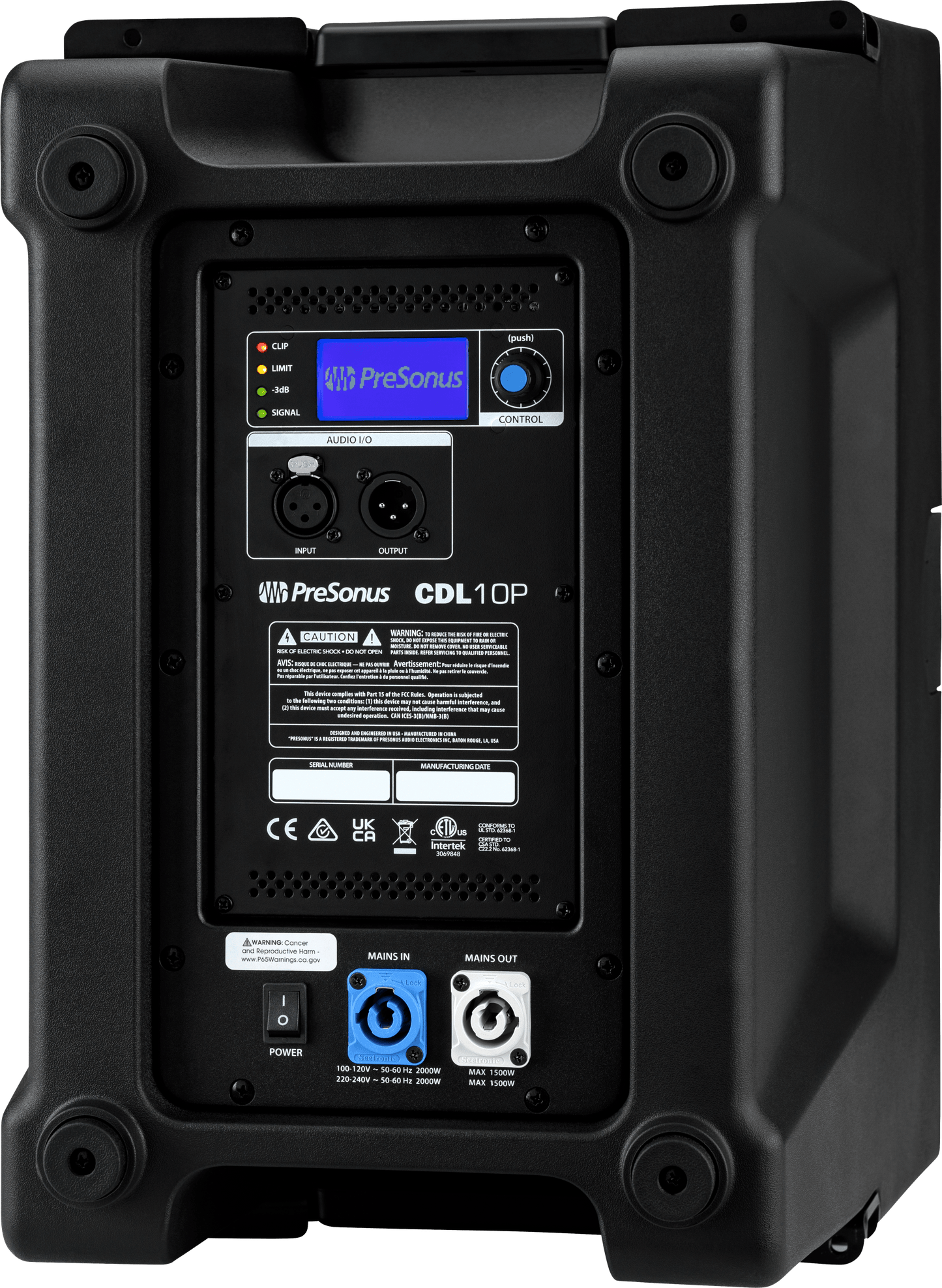

Auxiliary Input
N/A
Channels
One
Inputs
One - 1 XLR
Line Out
One - Direct Line Out (XLR)
Power Consumption
4.2A
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
CDL10P Constant Directivity Sound Reinforcement Loudspeaker, Black, EU
Series
CDL
Hardware
Audio Controls
Preset Select for number of arrayed boxes HPF On/Off PreSonus Subwoofer Configuration
Cabinet Material
Molded Plastic
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
HF Powere
1000W Peak, 500W Program (250W RMS)
Handle
2 Side
LF Power
1000W Peak, 500W Program (250W RMS)
LF Transducers
10” (2” Voice Coil)

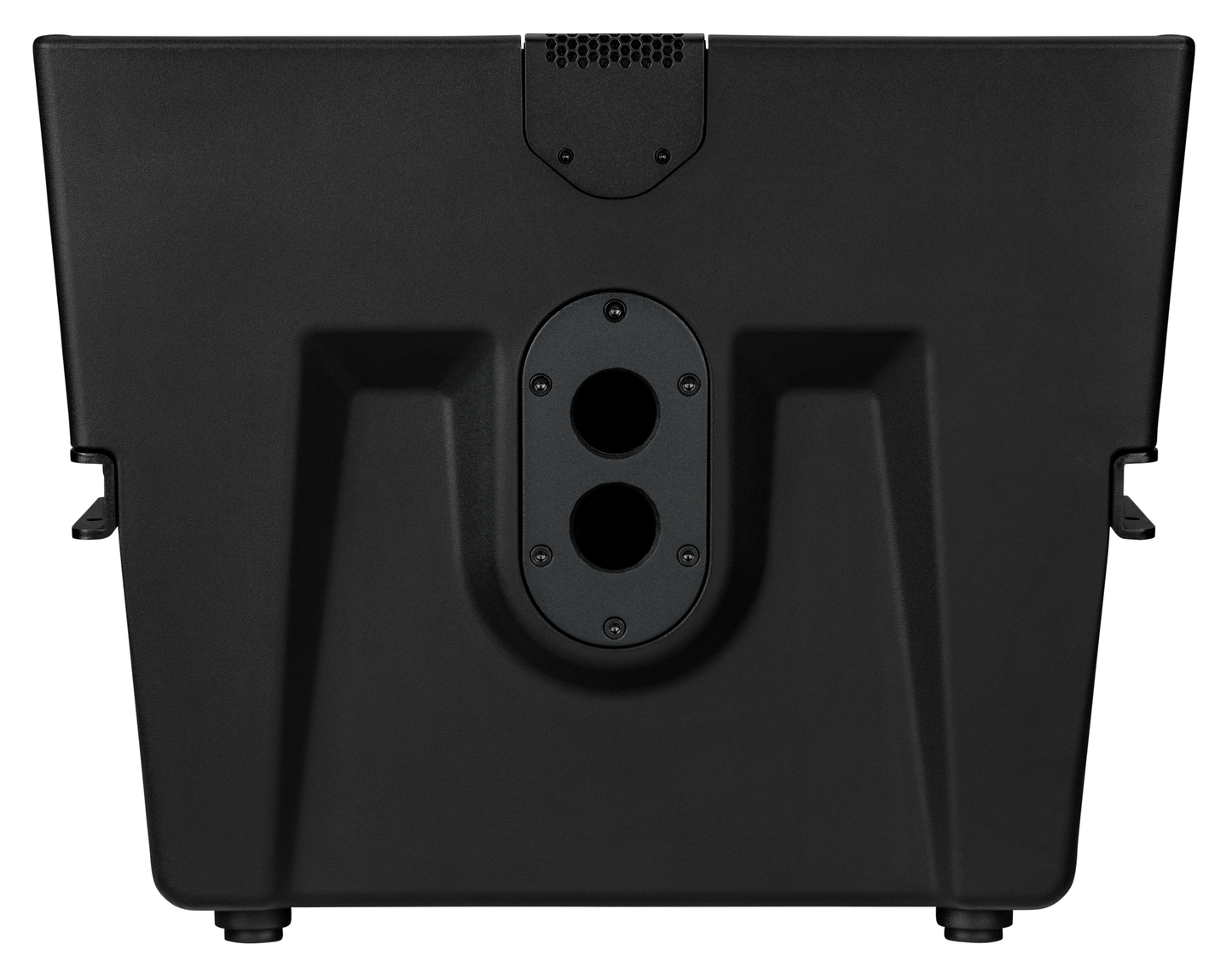

Pole Socket
Dual Position (0˚, 7.5˚)
Medidas
Product Depth
16" (40.6 cm)
Product Height
14.3" (36.3 cm)
Product Width
19.6” (49.78 cm)
Varios
Commodity Code
8518220090
Power Cable
powerCON™ In and Out
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency,
Transducer: Limiter
Suspension
Integrated Rigging (10:1 Load)
Desempeño
Peak SPL
130 dB
Total Power Output
2000W Peak, 1000W Program (500W RMS)
Altavoces
Coverage Pattern
120 degree (H) x 15 degree (V)
Crossover Frequency
420 Hz
Speaker Type
Powered 2-Way, Full-Range
Total Impedance
NA
