CDL Sub18 Active Subwoofer
CDL Sub18 Active Subwoofer
Visión General

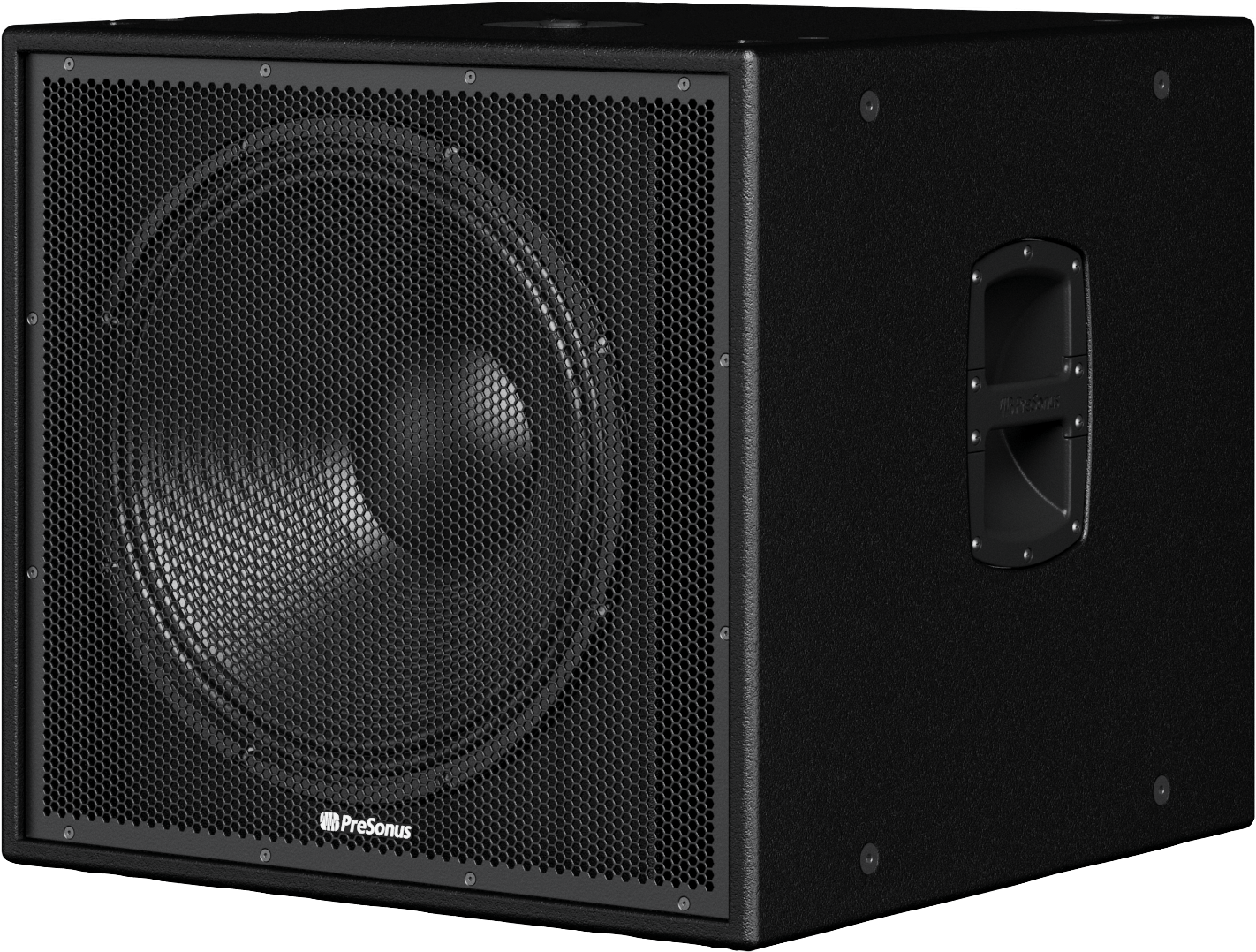

A terrific complement for any full-range loudspeaker and the perfect companion for PreSonus® CDL-series loudspeakers, the CDL Sub18 Active Subwoofer delivers tight, coherent low-end, driven by an integrated 2,000-watt Class D power amp, and features a unique ported design that maximizes efficiency. Its powerful, articulate sub-bass performance and compact design make the CDL Sub18 a great choice for installed and mobile sound.
The CDL Sub18 features a 18-inch LF transducer with 4-inch voice coil, providing 7 mm of driver travel before over-excursion to move more air for a low-end punch you can feel. When flown or combined for ground-stacked applications, the CDL Sub18 and CDL12P or CDL10P form a complete system with an even response across the frequency spectrum.

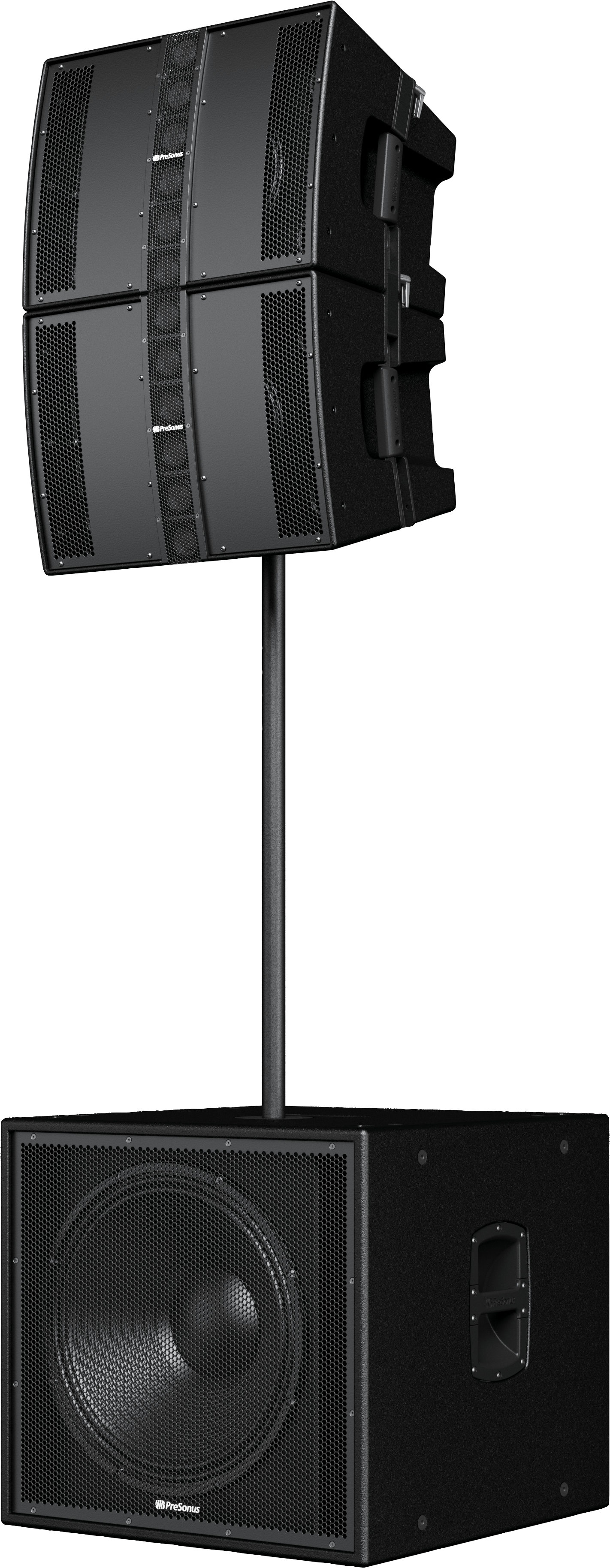

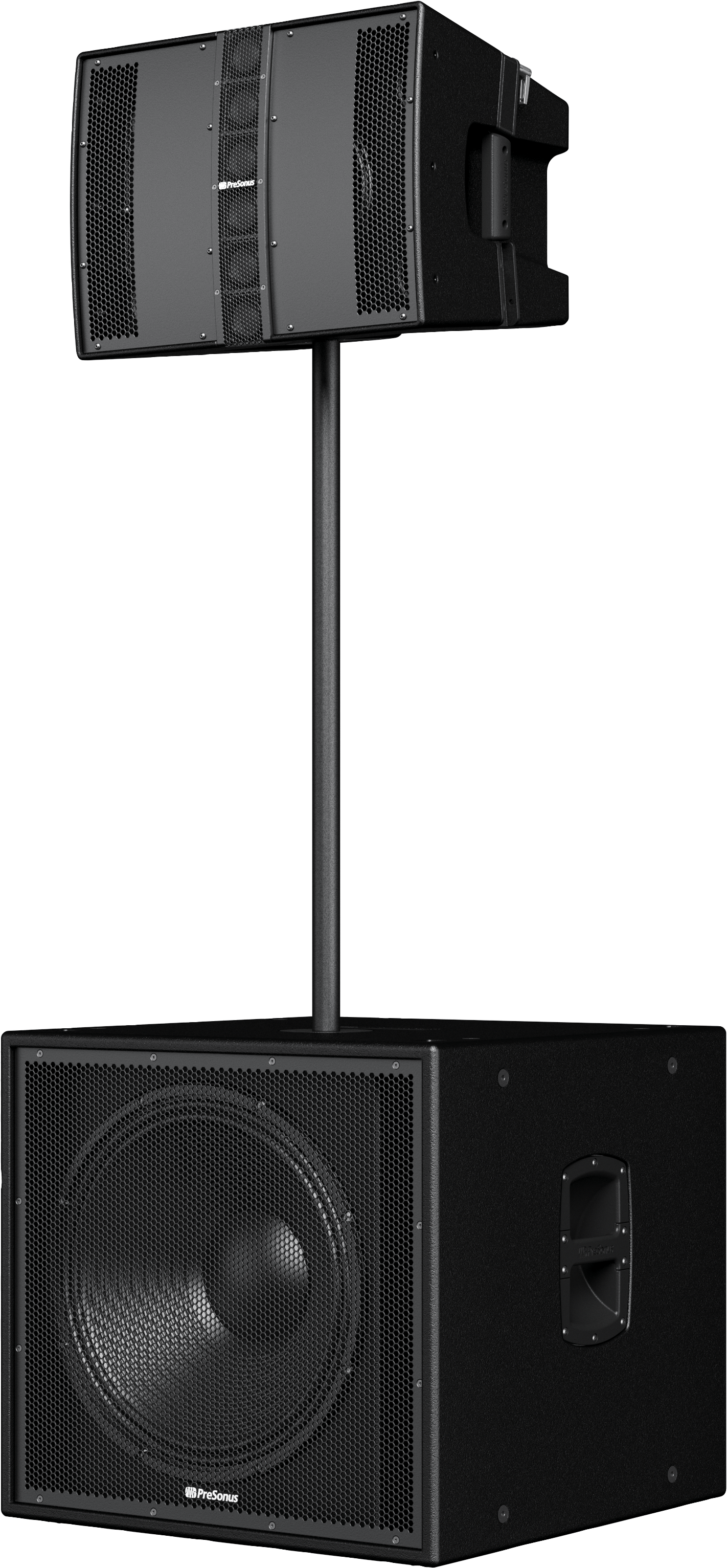

An integrated pole mount supports ground-stacked systems with up to two CDL-series loudspeakers. For more bass, stack two CDL Sub18 subwoofers together. Integrated M10 fly points make it easy to suspend CDL Sub18 subwoofers, for flexibility in any environment.
For flexibility in various live sound situations, a menu system is provided for adjusting the performance of the subwoofer. This includes, sound enhancing presets, plus a variable low pass filter for adjusting the transition between full range loudspeakers.
Overview
Características
- 18-inch low-frequency driver with a 4-inch voice coil
- 2,000W peak (1000W RMS) Class D power amp
- Maximum SPL 135 dB peak with 36 Hz to 144 Hz frequency response
- Unique ported design that maximizes efficiency
- Easy-to-use Menu and Performance Monitoring LED's
- Variable Low Pass Frequency Control
- Integrated M20 threaded pole mount for ground-stacked systems
- Integrated M10 Fly Points for suspending
- Balanced XLR input and balanced XLR direct output
- Locking In and Out powerCon AC connectors
- Rugged, Chemline Polyurea-finished, 15 mm eucalyptus plywood enclosure with tour-grade steel grille
Descargas
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Destacados
The CDL18s’ Unique Port Configuration
The CDL18s port configuration creates big bass in a compact cabinet. The four triangular ports are placed in corners so they couple to the cabinet and take advantage of the side walls to effectively elongate each port, allowing the CDL18s to move more air, while avoiding port chuffing and minimizing baffle reflections for better phase coherence.
Inputs, Outputs And More
The CDL Sub18 sports balanced XLR input and XLR direct output and menu-driven onboard variable low-pass filter, output power preset select, and polarity invert, giving you total control over your low end.
PreSonus® Six-Year Warranty
When you choose CDL-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.
Especificaciones
Electrónica
Channels
Not Applicable
Inputs
One - 1 XLR
Line Out
One - Direct Line Out (XLR)
Power Consumption
2000 Watts
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
CDL Sub18 Active Subwoofer, Black, UK
Series
CDL
Hardware
Cooling
Free Air Convection
Handle
2 Side
LF Power
2 x 500W Bridged (1000W Total)
Entradas
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu
Medidas
Product Depth
25" (63.5 cm)
Product Height
22.75" (57.8 cm)
Product Width
24.5" (62 cm)
Varios
Commodity Code
8518220090
Power Cable
powerCON™ In and Out
Desempeño
Amplifier Dynamic Range
119 dB (A - Weighted)
Maximum Output Level
135 dB
Total Power Output
2000W Peak (1000 RMS)
Altavoces
Speaker Type
Powered Subwoofer
Total Impedance
NA
Especificaciones
Electrónica
Channels
Not Applicable
Inputs
One - 1 XLR
Line Out
One - Direct Line Out (XLR)
Power Consumption
2000 Watts
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
CDL Sub18 Active Subwoofer, Black, EU
Series
CDL
Hardware
Cooling
Free Air Convection
Handle
2 Side
LF Power
2 x 500W Bridged (1000W Total)
Entradas
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu
Medidas
Product Depth
25" (63.5 cm)
Product Height
22.75" (57.8 cm)
Product Width
24.5" (62 cm)
Varios
Commodity Code
8518220090
Power Cable
powerCON™ In and Out
Desempeño
Amplifier Dynamic Range
119 dB (A - Weighted)
Maximum Output Level
135 dB
Total Power Output
2000W Peak (1000 RMS)
Altavoces
Speaker Type
Powered Subwoofer
Total Impedance
NA
